WSHP

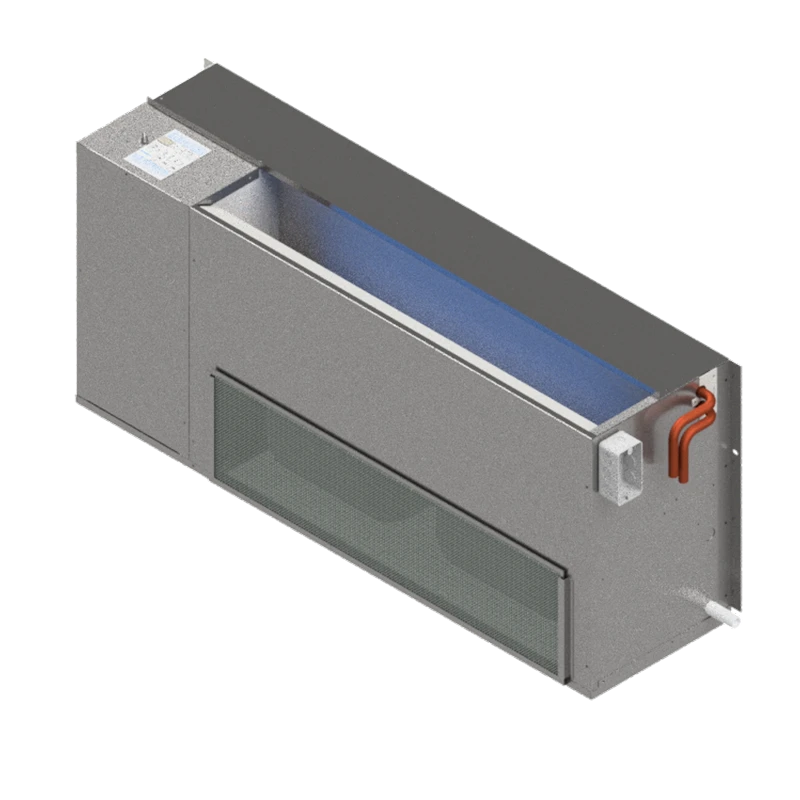

EZ Series 81

EZ Series 81

Islandaire “The Perfect Fit” units are designed to exactly replace the original, existing chassis! No field modification kits or builder renovations are required. Islandaire units are designed for optimal efficiency and reliability. This appliance is intended for new construction or replacement of Climate Master 801 water source heat pumps. Please confirm that the electrical rating of this appliance matches the electrical supply available before beginning installation.

Gold Standard in Efficiency

We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.

Engineered for Tranquility

Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.

Effortless Humidity Control

Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!

Downloads

Cutsheets & Manuals

Cutsheets
  • Download File
Dimensional Sheets
  • Download File
  • Download File
Installation Operation Manuals
Engineering Manuals
Revit Files
  • Download File
  • Download File
Submittal Sheets

Learn More

Specifications

  • Proudly Assembled in the U.S.A.
  • Superior Energy Efficiency Ratio (EER)
  • High efficiency coaxial condenser coil
  • High efficiency evaporator coil
  • Commercial Duty Construction with Heavy Gauge Galvanized Steel
  • High pressure protection
  • Compressor and water circuit freeze protection
  • Refrigerant circuit access ports
  • Float Switch provided as standard equipment
EZ15EZ18
Volts208/230 277208/230 277
BTUH Cool (Total)14,800/15,000 15,00018,800/19,000 1900
Amps Cool5.31/4.87 4.046.80/6.22 5.162
Watts Cool1,105/1,120 1,1201,415/1,430 1430
EER13.4/13.4 13.413.3/13.3 13.3
CFM High1450 (12.7)/460 (13.0) 460 (13.0)535 (15.1)/545 (15.4) 545 (15.4)
CFM Low1370 (10.5)/380 (10.8) 380 (10.8)400/390 (11.0)/400 (11.3) 400 (11.3)
GPM (L/min)3.8 (14.4)/3.8 (14.4) 3.8 (14.4)4.6 (17.4)/4.6 (17.4) 4.6 (17.4)
C.O.P.4.6/4.6 4.64.5/4.5 4.5
BTUH Heating17,700/17,900 17,90021,900/22,100 22100
Amps Heating 5.41/4.96 4.126.85/6.26 5.199
Watts Heating1,125/1,140 11401,425/1,440 1440
Sound Level(dBA) 257 5764 64
Shipping Weight LB(kg)100(45) 100(45)108(44) 108(49)
1CFM values are dry coil (not in cooling mode). 2Sound values represent sound pressure levels.
