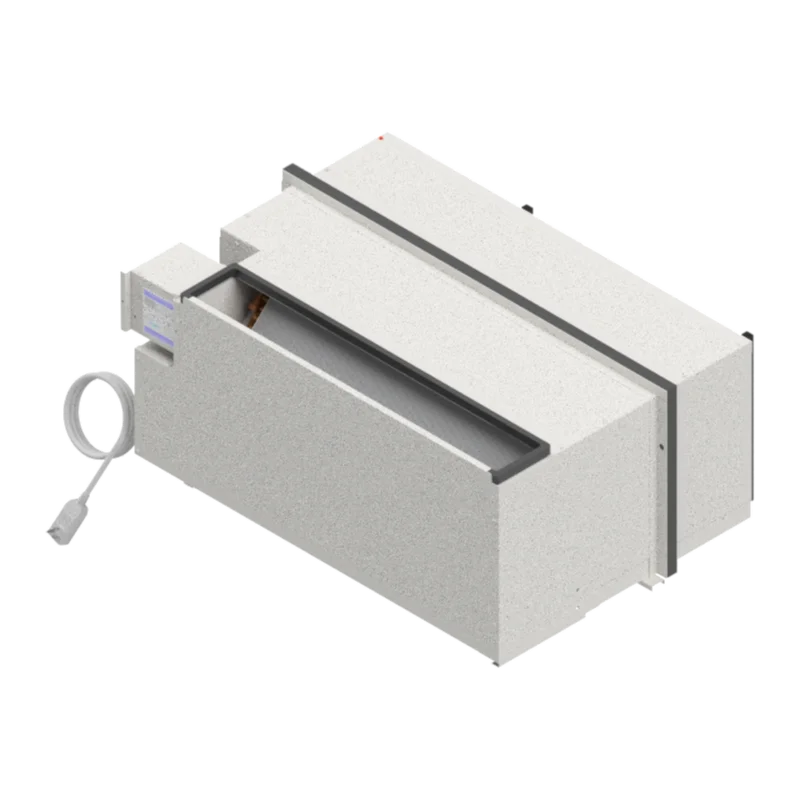

EZ Series C8
Islandaire EZ Series C8 is a replacement for the Climate Master SR-18B, 700-17G and CM-180 units. Our commercial duty construction with heavy gauge galvanized steel and superior components create an efficient, reliable unit. This design eliminates the need for any interior or exterior renovation. Use of the existing wall sleeve- cabinet and louver saves time and money, two very important factors in today’s competitive environment! If the need does occur where the room cabinet needs to be replaced, we manufacture them, as well as a square or rectangular control box.
Gold Standard in Efficiency
We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.
Engineered for Tranquility
Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.
Effortless Humidity Control
Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!
Downloads
Cutsheets & Manuals
| Cutsheets |
|
|||||
| Dimensional Sheets |
|
|||||
| Installation Operation Manuals | ||||||
| Engineering Manuals | ||||||
| Revit Files |
|
|||||
| Submittal Sheets |
Learn More
Specifications
- Proudly Assembled in the U.S.A.
- ETL listed products
- Superior Energy Efficiency Ratios (EERs)
- Commercial Duty Construction with Heavy Gauge Galvanized Steel
- Designed for exact replacement of existing sleeve opening
- Energy Efficient Rotary Compressors
- P.S.C. Evaporator and Condenser Motors
- High-Efficiency Refrigeration Coils Used to Provide Superior Heat Transfer
- Units Available as Cooling only, Cooling with Electric Heat, Cooling with Hydronic Heat or Heat Pumps
- Custom Options Available
- Available with State-of-the-Art Digital Intellitemp™ Control System
- Available with wired and wireless wall thermostats
- NYC MEA Number 358-93-E Vol. II
| EZ15 | |
|---|---|
| Volts | 208 / 230 277 |
| BTUH Cool | 14,500 14,500 |
| Amps | 8.73 / 7.89 6.62 |
| Watts Cool | 1,815 1,835 |
| EER | 8 7.9 |
| CFM High* | 500 500 |
| CFM Low* | 400 400 |
