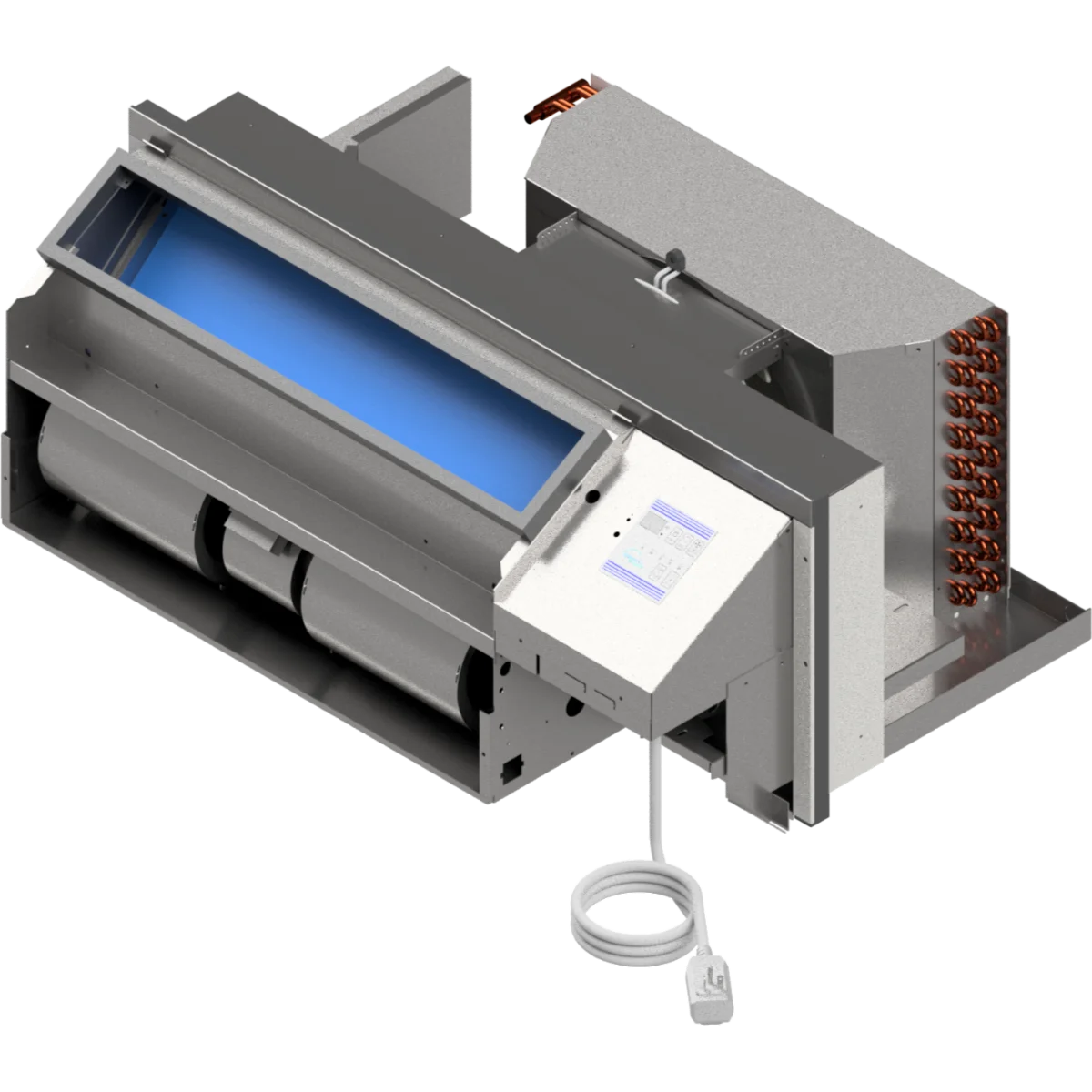

EZ Series G3
Our commercial duty construction with heavy gauge galvanized steel and superior components create an efficient reliable unit. This design eliminates the need for any interior or exterior renovation. If the need does occur where the duct kit, sub-base/skirt, wall sleeve cabinet and/or louver needs to be replaced, we manufacture these accessories as well. This unit is also used extensively for new construction projects where gas heat is preferred.
Gold Standard in Efficiency
We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.
Engineered for Tranquility
Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.
Effortless Humidity Control
Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!
Downloads
Cutsheets & Manuals
| Cutsheets |
|
|||||
| Dimensional Sheets |
|
|||||
| Installation Operation Manuals | ||||||
| Engineering Manuals | ||||||
| Revit Files |
|
|||||
| Submittal Sheets |
Learn More
Specifications
- Proudly Assembled in the U.S.A.
- ETL listed product
- Superior Energy Efficiency Ratios (EERs)
- Commercial Duty Construction with Heavy Gauge Galvanized Steel
- Designed for exact replacement of existing sleeve opening
- Energy Efficient Rotary Compressors
- P.S.C. Evaporator and Condenser Motors
- High-Efficiency Refrigeration Coils Used to Provide Superior Heat Transfer
- Units Available as Cooling only, Cooling with Natural Gas Heat or L.P. Gas Heat
- Custom Options Available
- Available with wired and wireless wall thermostats
- NYC MEA Number 358-93-E Vol. II
| EZ07 | EZ09 | EZ12 | EZ15 | |
|---|---|---|---|---|
| Volts | 115 208 / 230 277 | 115 208 / 230 277 | 115 208 / 230 277 | 208 / 230 277 |
| BTUH Cool | 7,000 7,000 7,000 | 9,200 9,600 9,400 | 9,200 9,600 9,400 | 14,500 14,500 |
| Amps Cool | 6.39 3.53 / 3.20 2.65 | 8.87 4.90 / 4.43 3.77 | 12.22 6.44 / 5.83 4.89 | 8.73 / 7.89 6.62 |
| Watts Cool | 735 735 735 | 1,020 1,020 1,045 | 1,405 1,340 1,355 | 1,815 1,835 |
| EER | 9.5 9.5 9.5 | 9.0 9.4 9.0 | 8.4 8.8 8.5 | 8.0 7.9 |
| High Cool CFM (m3/min) | 375 (10.6) 375 (10.6) 375 (10.6) | 400 (11.3) 400 (11.3) 400 (11.3) | 425 (12.0) 425 (12.0) 425 (12.0) | 450 (12.7) 450 (12.7) |
| Low Cool/Heat CFM (m3/min) | 320(9.0) 320 (9.1) 320 (9.0) | 350 (9.9) 350 (9.9) 350 (9.9) | 350 (9.9) 350 (9.9) 350 (9.9) | 400 (11.3) 400 (11.3) |
| BTUH Heating | 6,800 6,800 6,800 | 9,000 9,400 9,200 | 11,000 11,000 11,500 | 13,500 13,500 |
| Watts Heating | 710 710 710 | 975 985 1,000 | 1,240 1,110 1,250 | 1,520 1,520 |
| C.O.P. | 2.8 2.8 2.8 | 2.7 2.8 2.7 | 2.6 2.9 2.7 | 2.6 2.6 |
