EZ Series NE | PTAC/PTHP | Islandaire

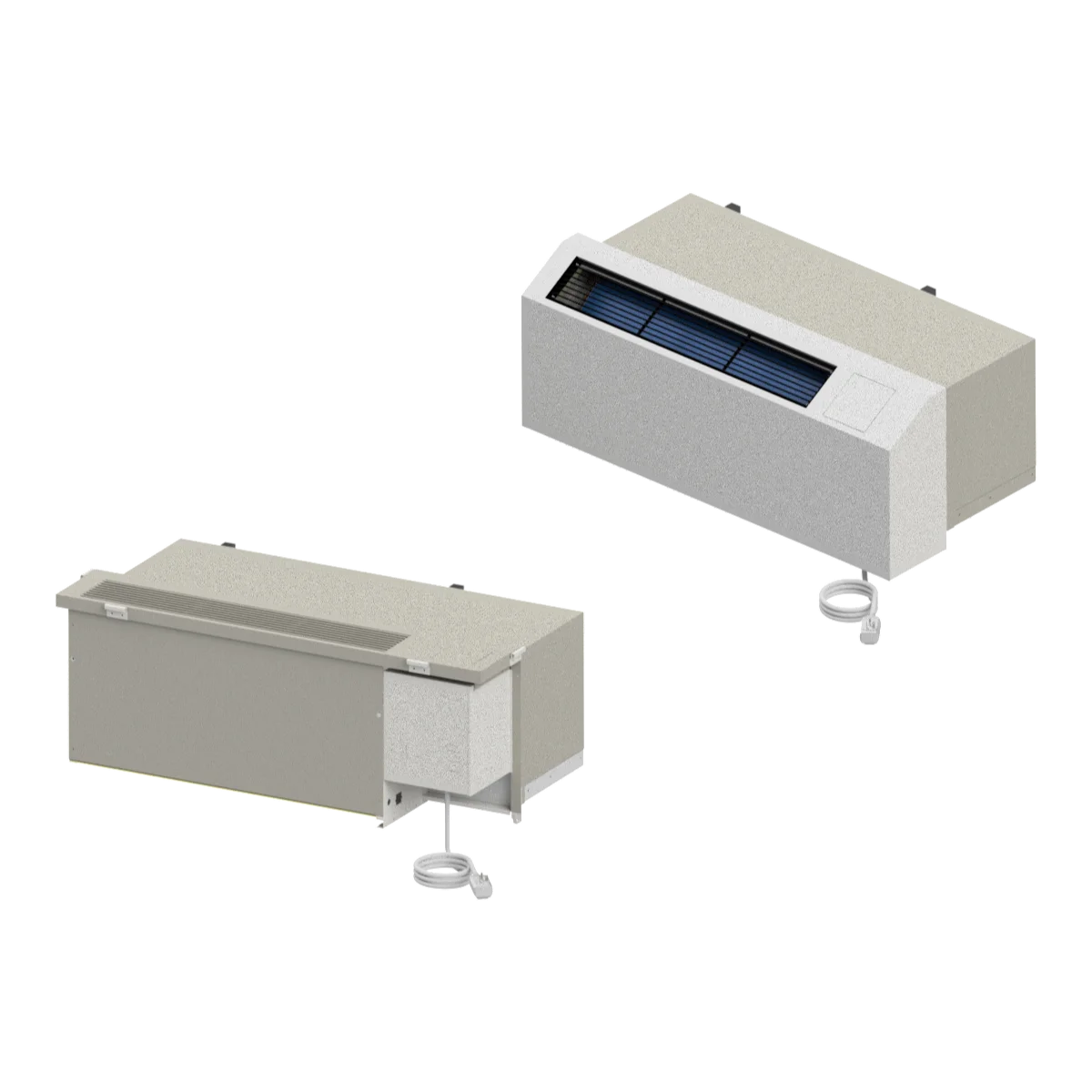

Islandaire EZ Series NE is a replacement for the McQuay N Series units, the sloped top style replaces the McQuay Suite and MQS Series units. Our commercial duty construction with heavy gauge galvanized steel and superior components create an efficient, reliable unit. This design eliminates the need for any interior or exterior renovation. Use of the existing wall sleeve-cabinet and louver saves time and money, two very important factors in today’s competitive environment! If the need does occur where the wall sleeve-cabinet and/or louver needs to be replaced, we manufacture these accessories as well. Flat Top units are provided with the enclosure top only; Sloped units are provided with complete enclosure (top, front panel and sides).

Gold Standard in Efficiency

We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.

Engineered for Tranquility

Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.

Effortless Humidity Control

Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!

Downloads

Cutsheets & Manuals

Cutsheets
  • Download File
Dimensional Sheets
  • Download File
Installation Operation Manuals
Engineering Manuals
Revit Files
  • Download File
Submittal Sheets

Learn More

Specifications

  • Proudly Assembled in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge Galvanized Steel
  • Designed for exact replacement of existing sleeve opening
  • Energy Efficient Rotary Compressors
  • BLDC Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric Heat, Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E Vol. II
EZ07EZ09EZ12EZ15
Volts115 208 / 230 277115 208 / 230 277115 208 / 230 277208 / 230 277
BTUH Cool7,000 7,000 7,0009,200 9,200 9,40011,800 12,000 11,50014,500 14,500
Amps Cool5.13 2.74 / 2.57 2.136.87 3.99 / 3.70 2.879.96 5.43 / 5.02 4.177.09 / 6.54 5.70
Watts Cool590 570 / 590 590790 830 / 850 7951,145 1,130 / 1,155 1,1551,475 / 1,505 1,580
EER11.9 11.9 / 11.8 11.911.4 11.2 / 11.2 11.310.5 10.5 / 10.4 10.49.7 / 9.7 9.5
CFM High *350 350 / 350 350350 350 / 350 350400 400 / 400 400450 / 450 450
CFM Low *280 280 / 280 280280 280 / 280 280350 350 / 350 350400 / 400 400
BTUH Heat6,400 6,100 / 6,400 6,0008,500 8,300 / 8,500 8,00011,000 10,800 / 11,000 11,00013,200 / 13,600 14,000
Watts Heat570 540 / 435 535710 745 / 585 715920 1,010 / 780 1,0301,285 / 1,335 1,380
C.O.P.3.3 3.3 / 4.3 3.33.5 3.3 / 4.3 3.33.5 3.1 / 4.1 3.13.0 / 3.0 3.0
