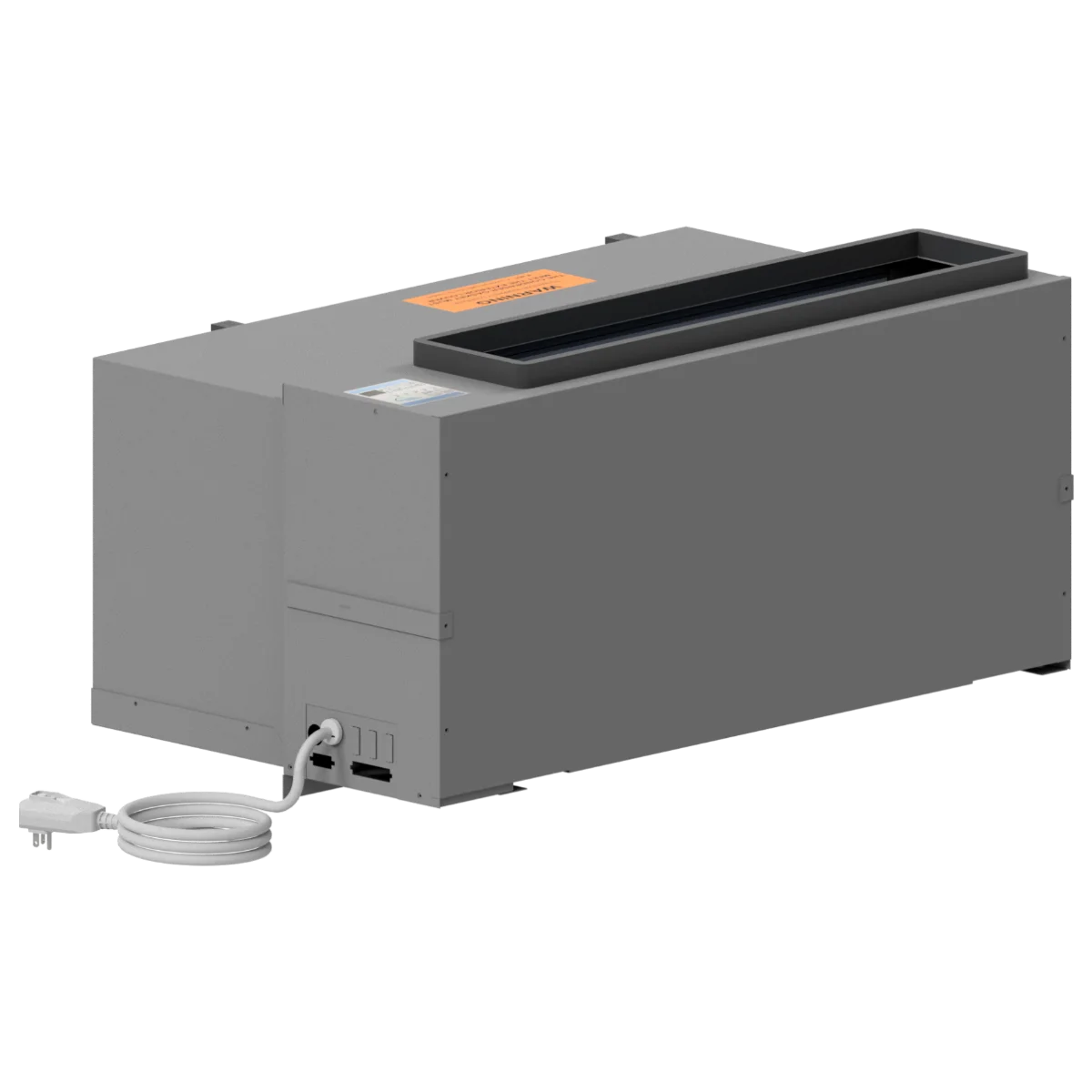

EZ Series RA
Islandaire EZ Series RA is a replacement for the Ice-Cap unit. Our commercial duty construction with heavy gauge galvanized steel and superior components create an efficient reliable unit. This design eliminates the need for any interior or exterior renovation. Use of the existing wall sleeve-cabinet and louver saves time and money, two very important factors in today’s competitive environment! If the need does occur where the wall sleeve-cabinet, hydronic coil, and/or louver needs to be replaced, we manufacture these accessories as well.
Gold Standard in Efficiency
We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.
Engineered for Tranquility
Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.
Effortless Humidity Control
Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!
Downloads
Cutsheets & Manuals
| Cutsheets |
|
|||||
| Dimensional Sheets |
|
|||||
| Installation Operation Manuals | ||||||
| Engineering Manuals | ||||||
| Revit Files |
|
|||||
| Submittal Sheets |
Learn More
Specifications
- Proudly Assembled in the U.S.A.
- Dual Condensate Drains
- ETL listed products
- Superior Energy Efficiency Ratios (EERs)
- Commercial Duty Construction with Heavy Gauge Galvanized Steel, extensive rust prevention features
- Designed for exact replacement of existing sleeve opening
- High EER (Energy Efficient) Rotary Compressors
- High Efficiency BLDC Evaporator and Condenser Motors
- High-Efficiency Refrigeration Coils Used to Provide Superior Heat Transfer
- Hydrophilic Coated Evaporator Coils
- Units Available as Cooling only, Cooling with Electric Heat, Cooling with Hydronic Heat, or Heat Pumps
- Custom Options Available
- Available with wired and wireless wall thermostats
- NYC MEA Number 358-93-E Vol. II
| EZ07 | EZ09 | EZ12 | EZ15 | |
|---|---|---|---|---|
| Volts | 115 230 277 | 115 230 277 | 115 230 277 | 230 277 |
| BTUH Cool | 7,000 7,000 7,000 | 9,200 9,200 9,400 | 11,800 12,000 11,500 | 14,500 14,500 |
| Amps | 6.48 3.24 2.69 | 8.87 4.39 3.77 | 12.22 5.5 4.89 | 7.89 6.62 |
| Watts Cool | 745 745 745 | 1,020 1,010 1,045 | 1,405 1,265 1,355 | 1,815 1,835 |
| EER | 9.4 9.4 9.4 | 9.0 9.1 9.0 | 8.4 9.5 8.5 | 8.0 7.9 |
| CFM High* | 400 400 400 | 400 400 400 | 420 420 420 | 500 500 |
| CFM Low* | 260 260 260 | 260 260 260 | 350 350 350 | 400 400 |
| BTUH Heating | 6,800 6,800 6,800 | 9,000 8,800 9,000 | 11,500 11,000 11,500 | 13,500 13,500 |
| Watts Heating | 710 710 710 | 975 955 975 | 1295 1150 1205 | 1520 1520 |
| C.O.P. | 2.8 2.8 2.8 | 2.7 2.7 2.7 | 2.6 2.8 2.8 | 2.6 2.6 |
