EZ Series VF

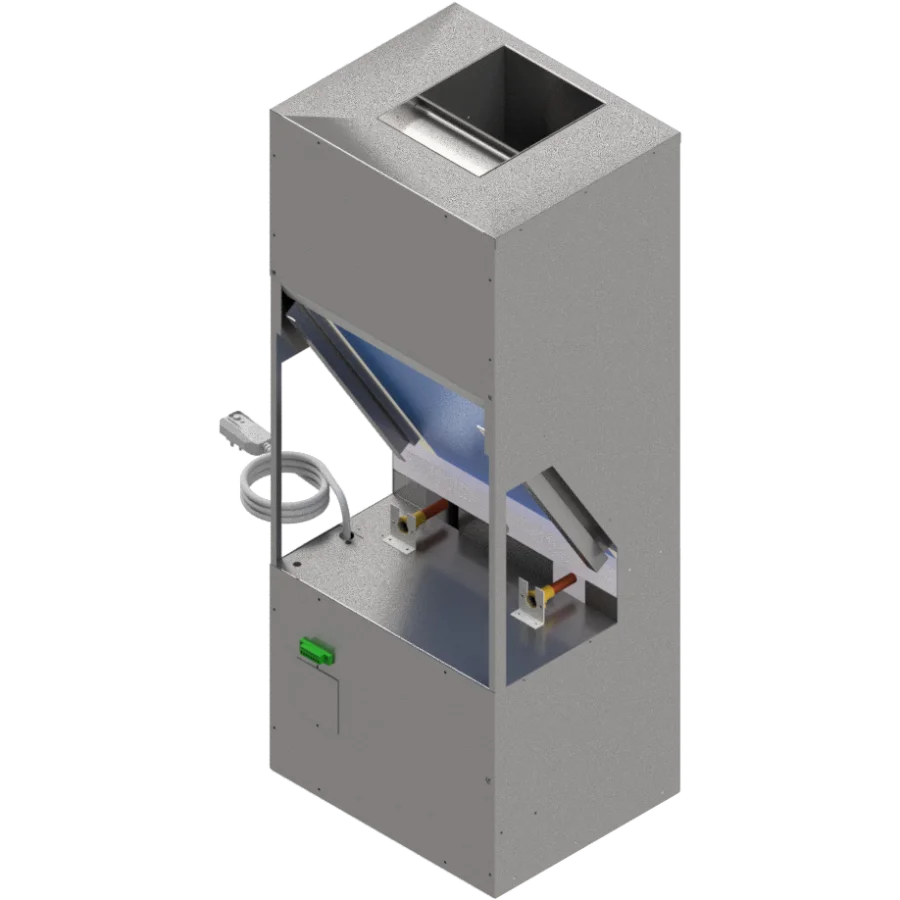

EZ Series VF | WSHP | Islandaire

Islandaire “The Perfect Fit”units are designed to exactly replace the original, existing chassis! No field modificattion kits or builder renovations are required. Islandaire units are designed for optimal efficiency and reliability. This unit has the same locations for the drain, the water, and the electrical connections. These features will save time and money.

This appliance is intended for new construction or replacement of McQuay and Singer water source heat pumps. Please confirm that the electrical rating of this appliance matches the electrical supply available before beginning installation.

Gold Standard in Efficiency

We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.

Engineered for Tranquility

Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.

Effortless Humidity Control

Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!

Downloads

Cutsheets & Manuals

Cutsheets
  • Download File
Dimensional Sheets
  • Download File
Installation Operation Manuals
Engineering Manuals
Revit Files
  • Download File
Submittal Sheets

Learn More

Specifications

  • Proudly Assembled in the U.S.A.
  • Superior energy efficient ratio (EER)
  • High efficiency coaxial condenser coil
  • High efficiency evaporator coil
  • Commercial duty construction with heavy gauge galvanized steel
  • High pressure protection
  • Compressor and water circuit freeze protection
  • Refrigerant circuit access ports
  • Float Switch provided as standard equipment
EZ09EZ12EZ15EZ18
Volts115 208 / 230 277115 208 / 230 277208 / 230 277208 / 230 277
BTUH Cool8,900 8,900 / 8,900 8,90011,600 11,600 / 11,600 11,60014,400 / 14,400 14,40017,100 / 17,100 17,100
Amps Cool6.35 3.51 / 3.17 2.648.26 4.57 / 4.13 3.435.67 / 5.13 4.266.32 / 5.72 4.75
Watts Cool730 730 / 730 730950 950 / 950 9501,180 / 1,180 1,1801,315 / 1,315 1,315
EER12.2 12.2 / 12.2 12.212.2 12.2 / 12.2 12.212.2 / 12.2 12.213.0 / 13.0 13.0
BTUH Heating11,900 11,900 / 11,900 11,90013,600 13,600 / 13,600 13,60017,400 / 17,400 17,40021,100 / 21,100 21,100
Amps Heating7.04 3.89 / 3.52 2.928.04 4.45 / 4.02 3.345.70 / 5.15 4.286.92 / 6.26 5.20
Watts Heating810 810 / 810 810925 925 / 925 9251,185 / 1,185 11851,440 / 1,440 1440
C.O.P.4.3 4.3 / 4.3 4.34.3 4.3 / 4.3 4.34.3 / 4.3 4.34.3 / 4.3 4.3
AIR CFM (1)300 300 / 300 300400 400 / 400 400500 / 500 500600 / 600 600
Water GPM2.0 2.0 / 2.0 2.03.0 3.0 / 3.0 3.03.8 / 3.8 3.84.6 / 4.6 4.6
Sound Lvl (dBA) (2)51 51 5153 53 5357 5764 64
Weight (lb)90 90 9095 95 95100 100108 108
(1) CFM values are dry coil (not in cooling mode). (2) Sound values represent sound pressure levels.
