WSHP

EZ Series VH

EZ Series VH Large

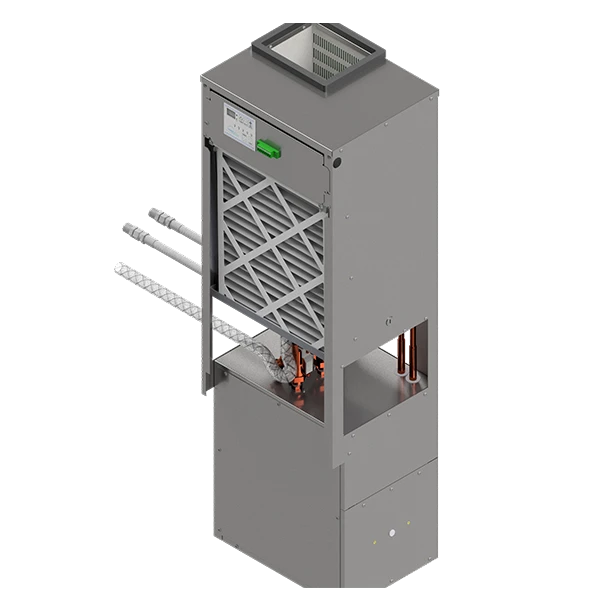

EZ Series VH - Image 2
EZ Series VH Large

Islandaire “The Perfect Fit” units are designed to exactly replace the original, existing chassis! No field modification kits or builder renovations are required. Islandaire units are designed for optimal efficiency and reliability. This unit has the same connection locations, and by using the existing blower section and existing cabinet, time and money is saved!

This appliance is intended for new construction or replacement of CGC InnKeeper and CGC Homekeeper water source heat pumps. Please confirm that the electrical rating of this appliance matches the electrical supply available before beginning installation.

Gold Standard in Efficiency

We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.

Engineered for Tranquility

Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.

Effortless Humidity Control

Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!

Downloads

Cutsheets & Manuals

Cutsheets
  • Download File
Dimensional Sheets
  • Download File
  • Download File
Installation Operation Manuals
  • Download File
Engineering Manuals
Revit Files
  • Download File
Submittal Sheets

Learn More

Specifications

  • Proudly Assembled in the U.S.A. „
  • Superior Energy Efficiency Ratio (EER) „
  • Hybrid heat pump with no reversing valve „
  • Hydronic Heat „
  • High efficiency coaxial condenser and evaporator coils „
  • Commercial duty construction with heavy gauge galvanized steel „
  • High pressure protection „
  • Compressor and water circuit freeze protection „
  • Refrigerant circuit access ports „
  • Blower assembly, control module or remote available „
  • Factory mounted demand auto flow valves „
  • Power disconnect switch „
  • Quiet operation „
  • On-board microprocessor provides diagnostics and safeties „
  • Choice of two front panel design options „
  • 100% self-contained chassis enables replacement in minutes „
  • Enhanced Indoor Air Quality with no standing water „
  • Exceeds ASHRAE 90.1 efficiency rating „
  • Optimum efficiency at 2 gpm/ton flow rate „
  • Float Switch provided as standard equipment
EZ08EZ10EZ12EZ16EZ18EZ20EZ24
Volts208 / 230208 / 230208 / 230208 / 230208 / 230208 / 230208 / 230
BTUH Cool (total)8,600 / 8,6009,500 / 9,50011,500 / 11,50015,200 / 15,20017,200 / 17,20018,200 / 18,20024,200 / 24,200
Amps Cool (fla)2.79 / 2.523.29 / 2.984.18 / 3.785.63 / 5.095.99 / 5.415.43 / 4.917.81 / 7.07
Watts Cool580 / 580685 / 685870 / 8701,170 / 1,1701,245 / 1,2451,130 / 1,1301,625 / 1,625
EER14.8 / 14.813.9 / 13.913.2 / 13.213.0 / 13.013.8 / 13.816.1 / 16.114.9 / 14.9
CFM High280 / 280320 / 320380 / 380450 / 450580 / 580650 / 650800 / 800
CFM Low250 / 250280 / 280320 / 320380 / 380450 / 450550 / 550700 / 700
GPM1.41.72.02.83.03.54.0
BTUH Heating (@100 EWT)6,9007,8008,40012,00012,80013,70015,500
BTUH Heating (@105 EWT)8,0009,1009,80014,00015,00016,00018,100
BTUH Heating (@110 EWT)9,20010,40011,20016,00017,10018,25020,700
BTUH Heating (@120 EWT)11,50013,00014,00020,00022,00022,85025,850
Shipping Weight (lb)110120120132125185220
(1) CFM values are dry coil (not in cooling mode). (2) Sound values represent sound pressure levels.
