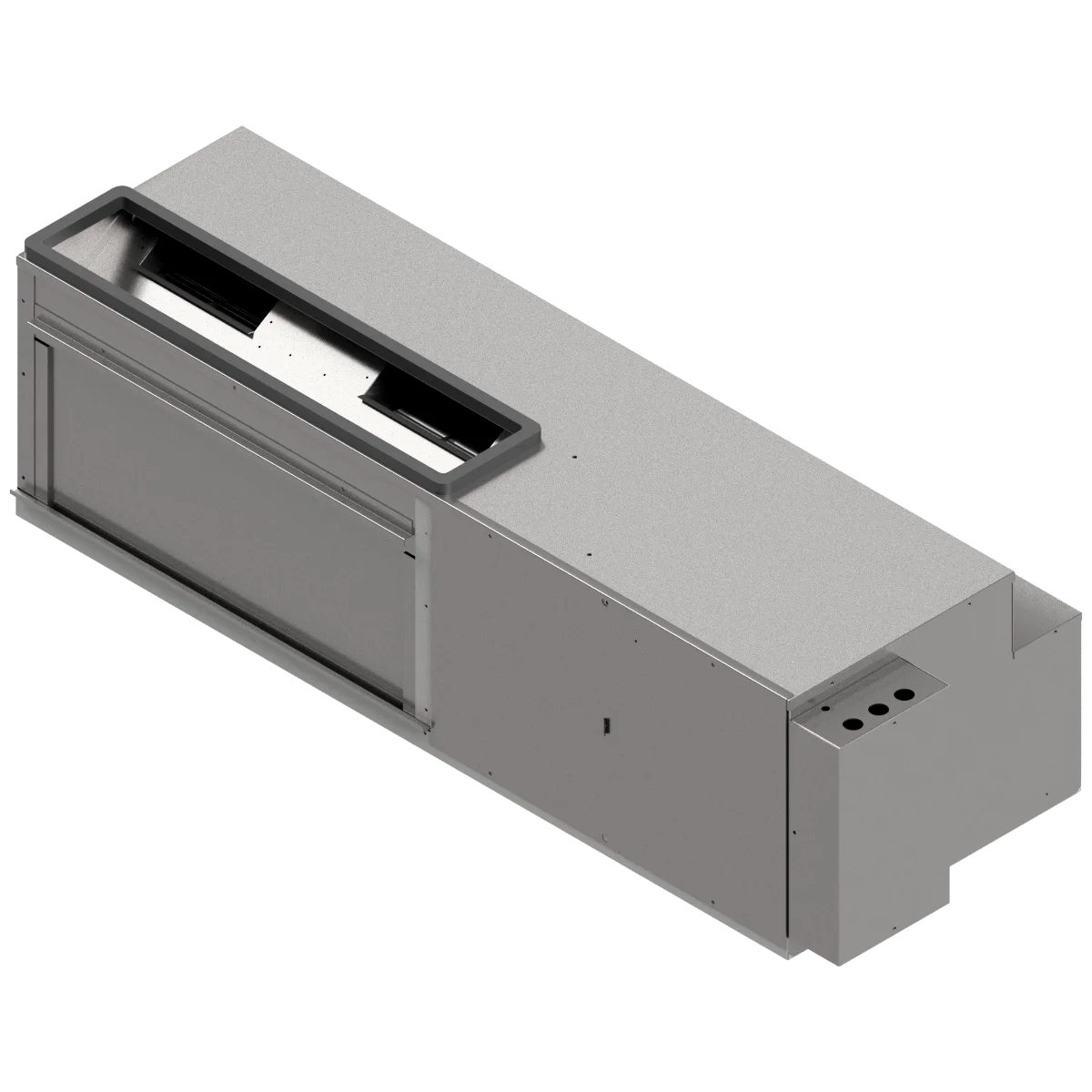

EZ Series WL

EZ Series WL

Islandaire EZ Series WL is a replacement for the Ice-Cap WL unit. Our commercial duty construction with heavy gauge galvanized steel and superior components create an efficient, reliable unit. This design eliminates the need for any exterior renovation. Use of the existing wall sleeve-cabinet and louver saves time and money, two very important factors in today’s competitive environment! One very important item is that the existing front hydronic coil must be removed and a new top mount hydronic coil plenum assembly be installed.

Gold Standard in Efficiency

We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.

Engineered for Tranquility

Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.

Effortless Humidity Control

Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!

Downloads

Cutsheets & Manuals

Cutsheets
  • Download File
Dimensional Sheets
  • Download File
Installation Operation Manuals
Engineering Manuals
Revit Files
  • Download File
Submittal Sheets

Learn More

Specifications

  • Proudly Assembled in the U.S.A.
  • ETL listed products
  • Superior Energy Efficiency Ratios (EERs)
  • Commercial Duty Construction with Heavy Gauge Galvanized Steel
  • Designed for exact replacement of existing sleeve opening
  • Energy Efficient Rotary Compressors
  • P.S.C. Evaporator and Condenser Motors
  • High-Efficiency Refrigeration Coils Used to Provide Superior Heat Transfer
  • Units Available as Cooling only, Cooling with Electric Heat, Cooling with Hydronic Heat, or Heat Pumps
  • Custom Options Available
  • Available with wired and wireless wall thermostats
  • NYC MEA Number 358-93-E Vol. II
EZ07EZ09EZ12EZ15
Volts115 208 / 230115 208 / 230115 208 / 230208 / 230
BTUH Cool7,200 7,200 / 7,2009,500 9,500 / 9,50011,500 11,500 / 11,50014,000 / 14,000
Amps Cool6.39 3.53 / 3.209.17 5.07 / 4.5911.91 6.59 / 5.968.51 / 7.70
Watts Cool735 735 / 7351,055 1,055 / 1,0551,370 1,370 / 1,3701,770 / 1,770
EER9.8 9.8 / 9.89.0 9.0 / 9.08.4 8.4 / 8.47.9 / 7.9
CFM High375 375400 400425 425450
CFM Low320 320350 350350 350400
* CFM values are dry coil (not in cooling mode).
