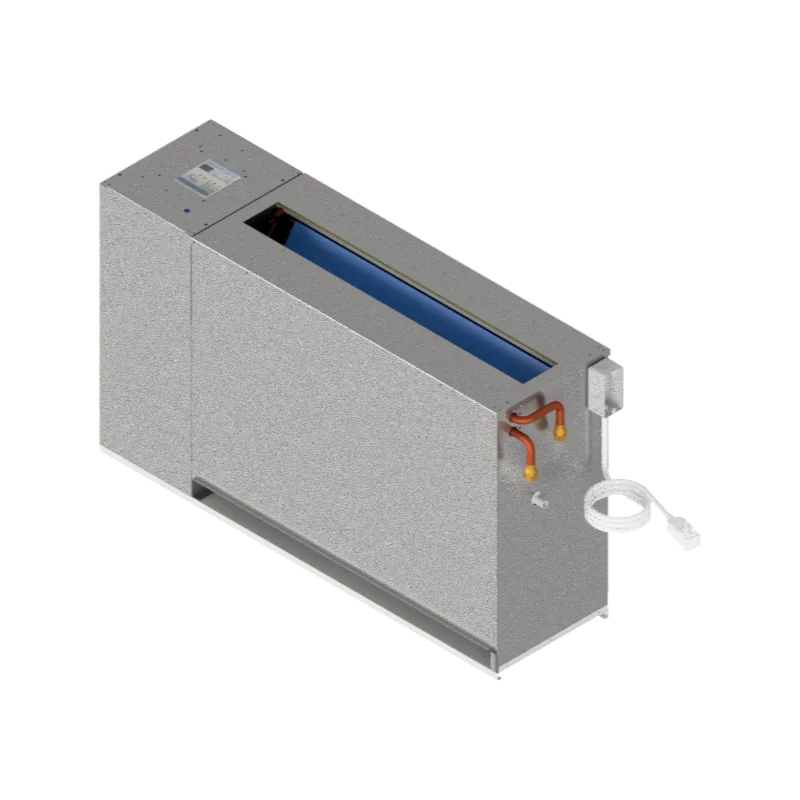

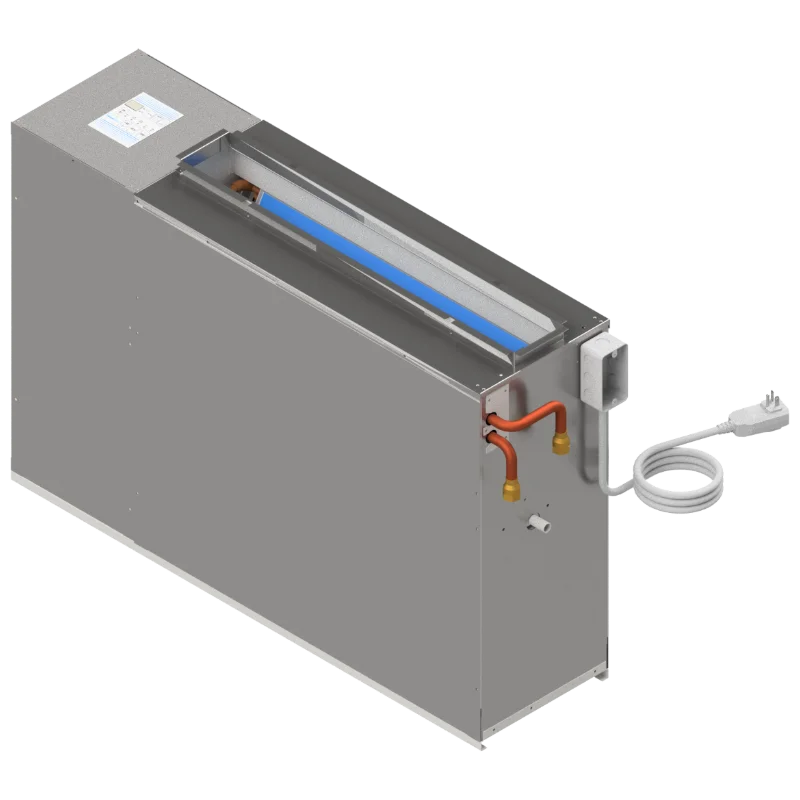

EZ Series WM
Islandaire “The Perfect Fit” units are designed to exactly replace the original, existing chassis! No field modification kits or builder renovations are required. Islandaire units are designed for optimal efficiency and reliability. This unit has the ability to have the piping and the controls “reversed” in the field. If you order the wrong side for piping and controls, no problem. Just reverse them in the field saving time and money. This appliance is intended for new construction or replacement of McQuay and Singer water source heat pumps. Please confirm that the electrical rating of this appliance matches the electrical supply available before beginning installation.
Gold Standard in Efficiency
We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.
Engineered for Tranquility
Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.
Effortless Humidity Control
Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!
Downloads
Cutsheets & Manuals
| Cutsheets |
|
|||||
| Dimensional Sheets |
|
|
|
|||
| Installation Operation Manuals | ||||||
| Engineering Manuals | ||||||
| Revit Files |
|
|
|
|||
| Submittal Sheets |
Learn More
Specifications
- Proudly Assembled in the U.S.A.
- Piping/controls can be field-reversed (left-to-right/right-to-left)
- Superior energy efficient ratio (EER)
- High efficiency coaxial condenser coil
- High efficiency evaporator coil
- Commercial duty construction with heavy gauge galvanized steel
- High pressure protection
- Compressor and water circuit freeze protection
- Refrigerant circuit access ports
- Float Switch provided as standard equipment
| EZ07 | EZ09 | EZ12 | EZ 15 | EZ 18 | |
|---|---|---|---|---|---|
| Volts | 115 208/230 277 | 115 208/230 277 | 115 208/230 277 | 208/230 277 | 208/230 277 |
| BTUH Cool | 8,100 7,900/8,100 8,100 | 9,300 9,100/9,300 9,300 | 12,200 12,000/12,200 12,200 | 14,800/15,000 15,000 | 18,800/19,000 19000 |
| Amps Cool | 5.04 2.72/2.52 2.09 | 6.00 3.25/3.00 2.49 | 7.78 4.23/3.89 3.23 | 5.31/4.87 4.04 | 6.80/6.22 5.162 |
| Watts Cool | 580 565/580 580 | 580 565/580 580 | 895 880/895 895 | 1,105/1,120 1,120 | 1,415/1,430 1430 |
| EER | 14.0 14.0/14.0 14.0 | 13.5 13.5/13.5 13.5 | 13.6 13.6/13.6 13.6 | 13.4/13.4 13.4 | 13.4/13.4 13.4 |
| CFM (m3/min) High (1) | 420 (11.9) 410 (11.6)/420 (11.9) 420 (11.9) | 420 (11.9) 410(11.6)/420 (11.9) 420 (11.9) | 460 (13.0) 450 (12.7)/460 (13.0) 460 (13.0) | 450 (12.7)/460 (13.0) 460 (13.0) | 535 (15.1)/545 (15.4) 545 (15.4) |
| CFM (m3/min) Low (1) | 280 (7.9) 270 (7.6)/280 (7.9) 280 (7.9) | 280 (7.9) 270 (7.6)/280 (7.9) 280 (7.9) | 320 (9.1) 310 (8.8)/320 (9.1) 320 (9.1) | 370 (10.5)/380 (10.8) 380 (10.8) | 390 (11.0)/400 (11.3) 400 (11.3) |
| GPM (L/min) | 2 (7.6) 2 (7.6)/2 (7.6) 2 (7.6) | 2 (7.6) 2 (7.6)/2 (7.6) 2 (7.6) | 3 (11.4) 3 (11.4)/3 (11.4) 3 (11.4) | 3.8 (14.4)/3.8 (14.4) 3.8 (14.4) | 4.6 (17.4)/4.6 (17.4) 4.6 (17.4) |
| C.O.P. | 4.6 4.6/4.6 4.6 | 4.5 4.5/4.5 4.5 | 4.6 4.6/4.6 4.6 | 4.6/4.6 4.6 | 4.5/4.5 4.5 |
| BTUH Heating | 9,600 9,400/9,600 9,600 | 12,000 11,800/12,000 12,000 | 15,000 14,800/15,000 15,000 | 17,700/17,900 17,900 | 21,900/22,100 22100 |
| Amps Heating | 5.30 2.88/2.65 2.20 | 6.78 3.70/3.39 2.82 | 8.30 4.54/4.15 3.45 | 5.41/4.96 4.12 | 6.85/6.26 5.199 |
| Watts Heating | 610 600/610 610 | 780 770/780 780 | 955 945/955 955 | 1,125/1,140 1140 | 1,425/1,440 1440 |
| Sound Lvl (dBA) (2) | 48 48 48 | 51 51 51 | 53 53 53 | 57 57 | 64 64 |
| Weight, lb (kg) | 85 (39) 85 (39) 85 (39) | 90 (41) 90 (41) 90 (41) | 95 (43) 95 (43) 95 (43) | 100 (45) 100 (45) | 108 (49) 108 (49) |
