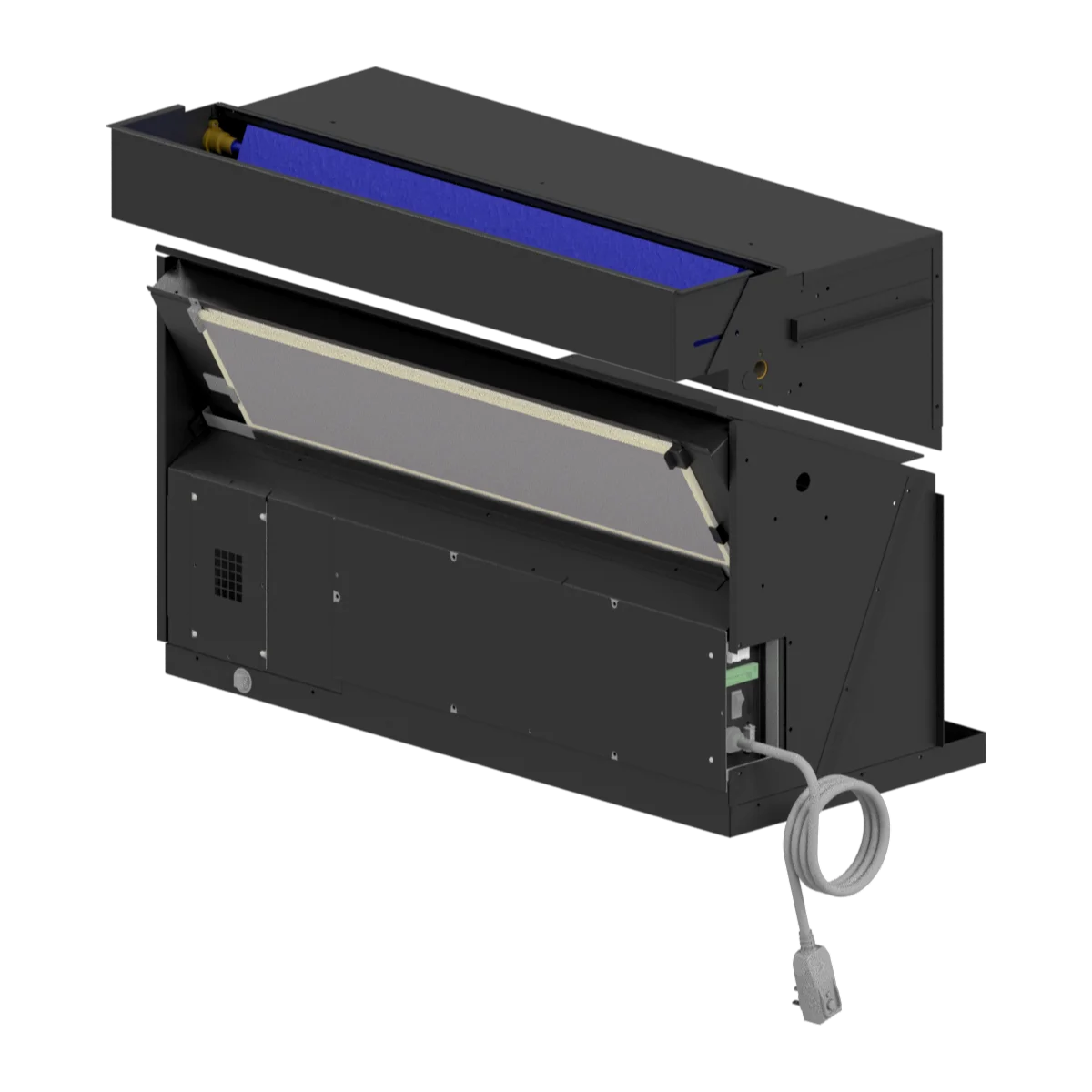

EZKF Series
Islandaire EZKF Series KF is a replacement for the Remington, Singer and McQuay models of K units. Our commercial duty construction with heavy gauge galvanized steel and superior components create an efficient, reliable unit. This design eliminates the need for any interior or exterior renovation. Use of the existing wall sleeve- cabinet and louver saves time and money, two very important factors in today’s competitive environment! If the need does occur where the wall sleeve, sloped room cabinet and flat top room cabinet and/or louver needs to be replaced, we manufacture these accessories as well. If cooling section only is ordered a molex plug is provided.
Gold Standard in Efficiency
We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.
Engineered for Tranquility
Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.
Effortless Humidity Control
Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!
Downloads
Cutsheets & Manuals
| Cutsheets |
|
|||||
| Dimensional Sheets |
|
|||||
| Installation Operation Manuals | ||||||
| Engineering Manuals | ||||||
| Revit Files |
|
|||||
| Submittal Sheets |
Learn More
Specifications
- Proudly Designed and Engineered in the U.S.A.
- ETL listed products
- Superior Energy Efficiency Ratios (EERs) and Coefficient of Performance (COPs)
- Commercial Duty Construction with heavy gauge, painted galvanized steel, extensive rust prevention features
- Designed for exact replacement of existing sleeve opening
- Energy Efficient Rotary Compressors
- BLDC Evaporator Motor, PSC Condenser Motor
- High-Efficiency Refrigeration Coils Used to Provide Superior Heat Transfer
- Units Available as Cooling only, Cooling with Electric Heat, Cooling with Hydronic Heat, or Heat Pump
- Available with wired and wireless wall thermostats
- NYC MEA Number 358-93-E Vol. II
- High-Efficiency, energy-conserving design
- Dual Condensate Drains
- Custom Options Available
| EZ09 | EZ12 | EZ16 | |
|---|---|---|---|
| Volts | 115 208 / 230 277 | 115 208 / 230 277 | 208 / 230 277 |
| BTUH Cool | 9,000 8,600 / 9,000 9,000 | 12,000 11,800 / 12,000 12,000 | 12,000 11,800 / 12,000 12,000 |
| Amps Cool | 6.9 3.65 / 3.46 3.00 | 4.28 5.3 / 4.9 4.28 | 7.04 / 6.65 5.77 |
| Watts Cool | 795 760 / 795 795 | 1,135 1,110 / 1,135 1,135 | 1,465 / 1,530 1,530 |
| EER | 11.3 11.3 / 11.3 11.3 | 10.6 10.5 / 10.6 10.6 | 9.8 / 9.8 9.8 |
| CFM High | 440 390 / 440 440 | 440 390 / 440 440 | 530 / 560 560 |
| CFM Low | 390 340 / 390 390 | 440 390 / 440 440 | 440 / 485 485 |
| BTUH Heating | 8,800 8,500 / 8,800 8,800 | 11,800 11,600 / 11,800 11,800 | 13,000 / 13,500 13,500 |
| Watts Heating | 785 800 / 785 785 | 1,080 1,060 / 1,080 1,080 | 1,270 / 1,315 1,315 |
| C.O.P. | 3.28 3.28 / 3.28 3.28 | 3.2 3.2 / 3.2 3.2 | 3.0 / 3.0 3.0 |
| Noise, Indoor Low/High (dBA) | 47/49 47/49 47/49 | 48/50 48/50 48/50 | 50/54 50/54 |
| Noise, Outdoor (dBA) | 63 63 63 | 63 63 63 | 63 63 |
| Weight (lbs) | 94.8 94.8 94.8 | 99.2 99.2 99.2 | 102 102 |
