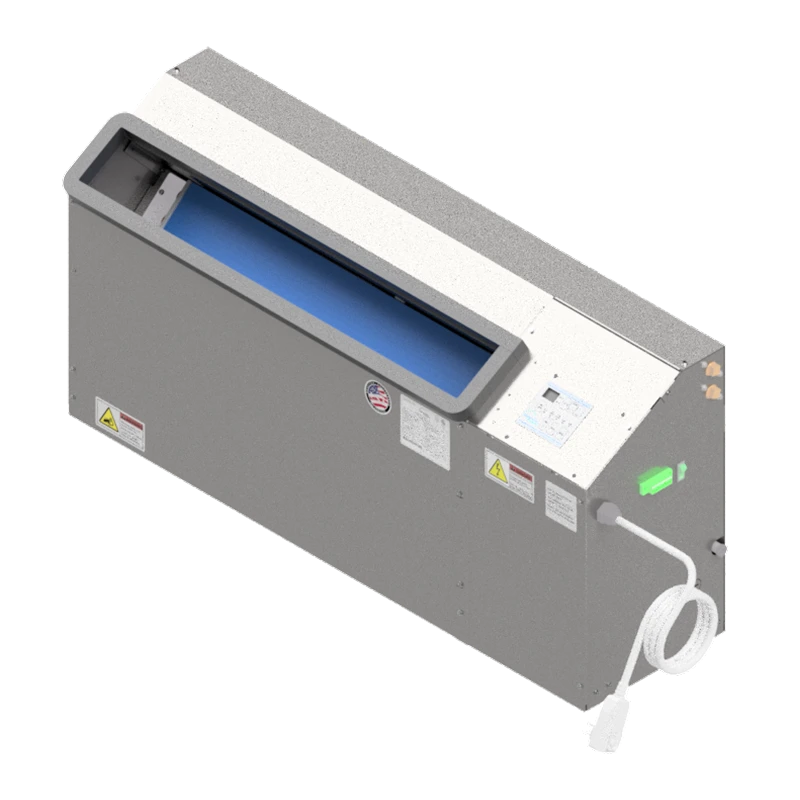

EZLV Series
Islandaire EZLA “Low Ambient” Series is our 42” x 16”, new construction, packaged terminal heat pump (PTHP). Its variable motor speed compressor provides variable refrigerant flow (VRF), rather than standard on/off operation. By operating at varying flow rates, VRF units work only at the needed capacity allowing for substantial energy savings under changing load conditions. The EZLA heat pump is specifically designed for colder climates where low ambient temperature operation is required.
In addition to the above, this unit has also been designed for low noise transmission, with an Outdoor–Indoor Transmission Class (OITC) rating of 28, and a Sound Transmission Class (STC) rating of 37. Our commercial duty construction with heavy gauge galvanized steel and superior components create an efficient and reliable unit.
Gold Standard in Efficiency
We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.
Engineered for Tranquility
Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.
Effortless Humidity Control
Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!
Downloads
Cutsheets & Manuals
| Cutsheets |
|
|||||
| Dimensional Sheets |
|
|||||
| Installation Operation Manuals | ||||||
| Engineering Manuals | ||||||
| Revit Files |
|
|
||||
| Submittal Sheets |
Learn More
Specifications
- Proudly Designed and Engineered in the U.S.A.
- Units Available as Cooling only, Cooling with Electric Heat, or Heat Pump
- Available with wired and wireless wall thermostats
- Piping can be field-reversed (left-to-right/rightto- left)
- Superior energy efficient ratio (EER)
- BLDC Evaporator Motor, PSC Condenser Motor
- High efficiency Coaxial Condenser Coil
- High efficiency Evaporator Coil
- Commercial duty construction with heavy gauge galvanized steel
- High pressure protection
- Compressor and water circuit freeze protection
- Low pressure protection
- 8˚ Sloped Top Discharge Design
- Quiet operation
- Controls/electrical connections on right side of unit
| EZ09 | EZ12 | EZ15 | EZ18 | |
|---|---|---|---|---|
| Volts | 115 208/230 | 115 208/230 | 208/230 | 208/230 |
| BTUH Cool | 9,600 9,300 | 12,500 11,650 | 13,800 | 16,400 |
| AMPS Cool | 6.10 3.00 | 11.50 3.72 | 4.35 | 5.37 |
| Watts Cool | 705 690 | 919 855 | 1,000 | 1,235 |
| EER | 13.6 13.5 | 13.6 13.6 | 13.8 | 13.3 |
| BTUH Heating | 9,800 12,000 | 14,500 14,500 | 16,500 | 18,200 |
| AMPS Heating | 6.10 3.39 | 9.00 4.02 | 4.57 | 4.65 |
| Watts Heating | 775 780 | 925 925 | 1,050 | 1,070 |
| C.O.P. | 3.7 4.5 | 4.6 4.6 | 4.6 | 4.5 |
| CFM (m3/min) High* | 360(10.2) 420 | 360(10.2) 360 | 450 | 520 |
| CFM (m3/min) Low* | 320(9.1) 280 | 320(9.1) 320 | 380 | 400 |
| GPM (L/min) | 1.6(6.1) 1.6(6.1) | 2.0(7.6) 2.0(7.6) | 2.5(9.5) | 3.0(11.4) |
| Noise, Indoor Low/High (dBA) | 47/49 47/49 | 48/50 48/50 | 50/54 | 50/54 |
| Noise, Outdoor (dBA) | 63 63 | 63 63 | 63 | 63 |
| Weight, Lbs (kg) | 115(52) 110(50) | 115(52) 115(52) | 120(54) | 125(57) |
