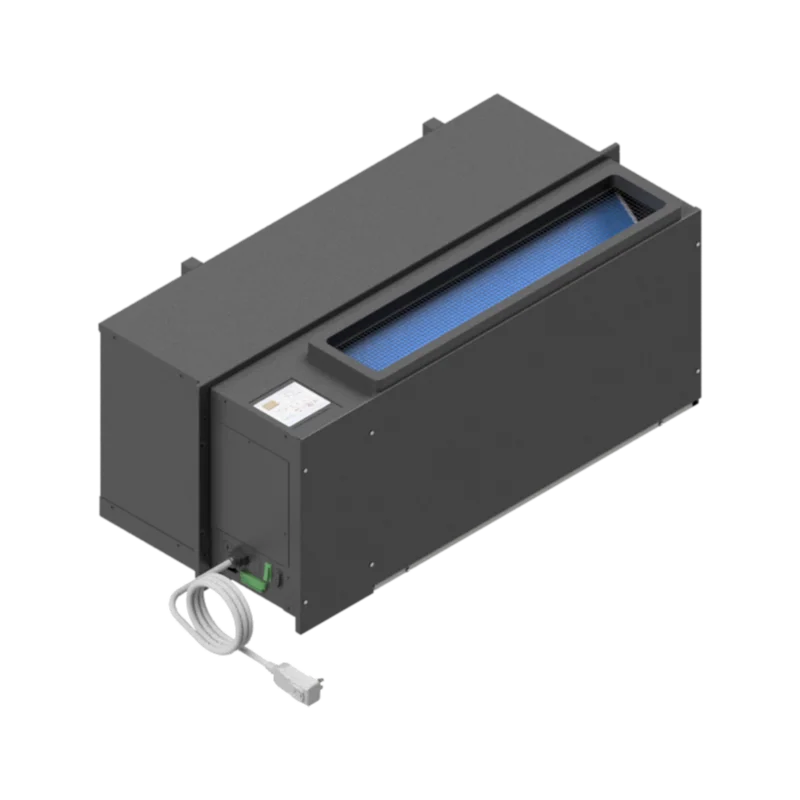

EZRM Series
Islandaire EZRM Series is a high-efficiency replacement for the Embassy Weathertwin, TPI Ra-Matic, Cool Heat and Zoneaire models of RM and SC units. Our commercial duty construction with heavy gauge galvanized steel and superior components create an efficient, reliable unit. This design eliminates the need for any interior or exterior renovation. Use of the existing wall sleeve-cabinet and louver saves time and money, two very important factors in today’s competitive environment! If the need does occur where the wall sleeve-cabinet, hydronic coil and/or louver needs to be replaced, we manufacture these accessories as well. Consult your factory contact for pricing.
Gold Standard in Efficiency
We’ve designed it so your system doesn’t have to constantly start and stop, which saves energy and helps it run better.
Engineered for Tranquility
Experience ultimate comfort with whisper-quiet operation. Our advanced system intuitively adjusts its speed to match your room’s needs, eliminating disruptive on/off cycles and keeping things peaceful.
Effortless Humidity Control
Our clever technology keeps humidity at bay, so you’ll always feel comfortably dry, even on the stickiest days. No more clamminess!
Downloads
Cutsheets & Manuals
| Cutsheets |
|
|||||
| Dimensional Sheets |
|
|||||
| Installation Operation Manuals | ||||||
| Engineering Manuals |
|
|||||
| Revit Files | ||||||
| Submittal Sheets |
Learn More
Specifications
- Proudly Designed and Engineered in the U.S.A.
- ETL listed products
- Superior Energy Efficiency Ratios (EERs) and Coefficient of Performance (COPs)
- Commercial Duty Construction with heavy gauge, painted galvanized steel
- Designed for exact replacement of existing sleeve opening
- Energy Efficient Rotary Compressors
- BLDC Evaporator Motor, PSC Condenser Motor
- High-Efficiency Refrigeration Coils Used to Provide Superior Heat Transfer
- Units Available as Cooling only, Cooling with Electric Heat, Cooling with Hydronic Heat, or Heat Pump
- Available with wired and wireless wall thermostats
- NYC MEA Number 358-93-E Vol. II
- High-Efficiency, energy-conserving design
- Optional use Internal Drain
| EZ09 | EZ12 | EZ16 | |
|---|---|---|---|
| Volts | 115 208 / 230 277 | 115 208 / 230 277 | 208 / 230 277 |
| BTUH Cool | 9,600 9,000 9,000 | 12,000 12,000 12,000 | 15,000 15,000 |
| Amps Cool | 6.9 3.8 / 3.3 2.87 | 11.5 5.5 / 5.1 4.15 | 7.6 / 6.9 5.69 |
| Watts Cool | 850 795 795 | 1,150 1,150 1,150 | 1,575 1,575 |
| EER | 11.3 11.3 | 10.4 10.4 10.4 | 9.5 9.5 |
| CFM High | 330 330 330 | 350 350 350 | 490 490 |
| CFM Low | 250 250 250 | 330 330 330 | 390 390 |
| BTUH Heat | 8,100 8,000 8,000 | 10,950 10,950 10,950 | 13,300 13,300 |
| Watts Heat | 775 710 710 | 1035 1035 1035 | 1300 1300 |
| C.O.P. | 3.2 3.3 3.3 | 3.1 3.1 3.1 | 3 3 |
| Noise, Indoor Low/High (dBA) | 47/49 47/49 47/49 | 48/50 48/50 48/50 | 50/54 50/54 |
| Noise, Outdoor (dBA) | 63 63 63 | 63 63 63 | 63 63 |
| Weight (lbs) | 113 113 113 | 116 116 116 | 126 126 |
